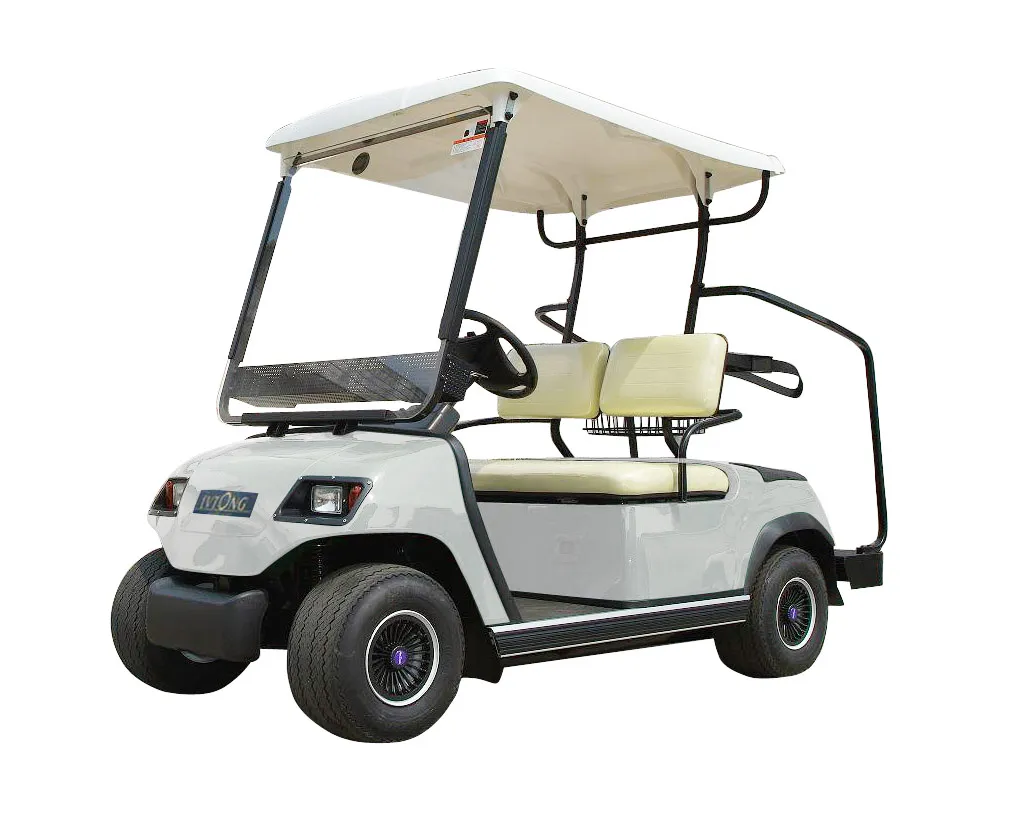

2 Seaters 4 Wheel Electric Golf Cart (LT_A2)

Product Description

2 Seater 4 Wheel Electric Golf Cart (LT_A2)
Electric vehicle product description

1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery: Trojan
4. Stable quality, little noise, anti-fatigue and long durability
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage
2 Seaters 4 Wheel Electric Golf Cart (LT_A2)

2 Seaters 4 Wheel Electric Golf Cart (LT_A2)

Electric system	controller	1266/275A
	battery	trojan battery 8V 6 units
	motor	KDS48V/3.7KW motor
	charger	Computer Intelligent input 220V/110V ourput 48V 20A
Charging time		Less than 12 hours discharging rate 80%
Body configuration	Glass	PC glass	Sun Roof	ABS Vacuum forming
	seat	leather	Floor	Autiskid rubber floor
	Rear mirror	Handoperated, both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
	DC/Light/Signal	48V/12V-300W Front lightturning light rear light horn Buzzer
	Body	PP Vacuum forming
	Dash Board	PP Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
	Braking system	Rear drum brake+compound pedal brake
	Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
	Rear axle and suspension	Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
	Tire diameter	452mm
Parameter	Lengthwidthheight	238012001850mm
	Loading passenger	2
	Max speed km/h	24km/h
	Mileage /km	90_ 100km flat road
	Max climbing ability	30%
	Mini turning radium m	3.4m
	Mini ground clearance	110mm
	Wheel base	Front 930/back 1010mm
	Braking distance	4.2M
