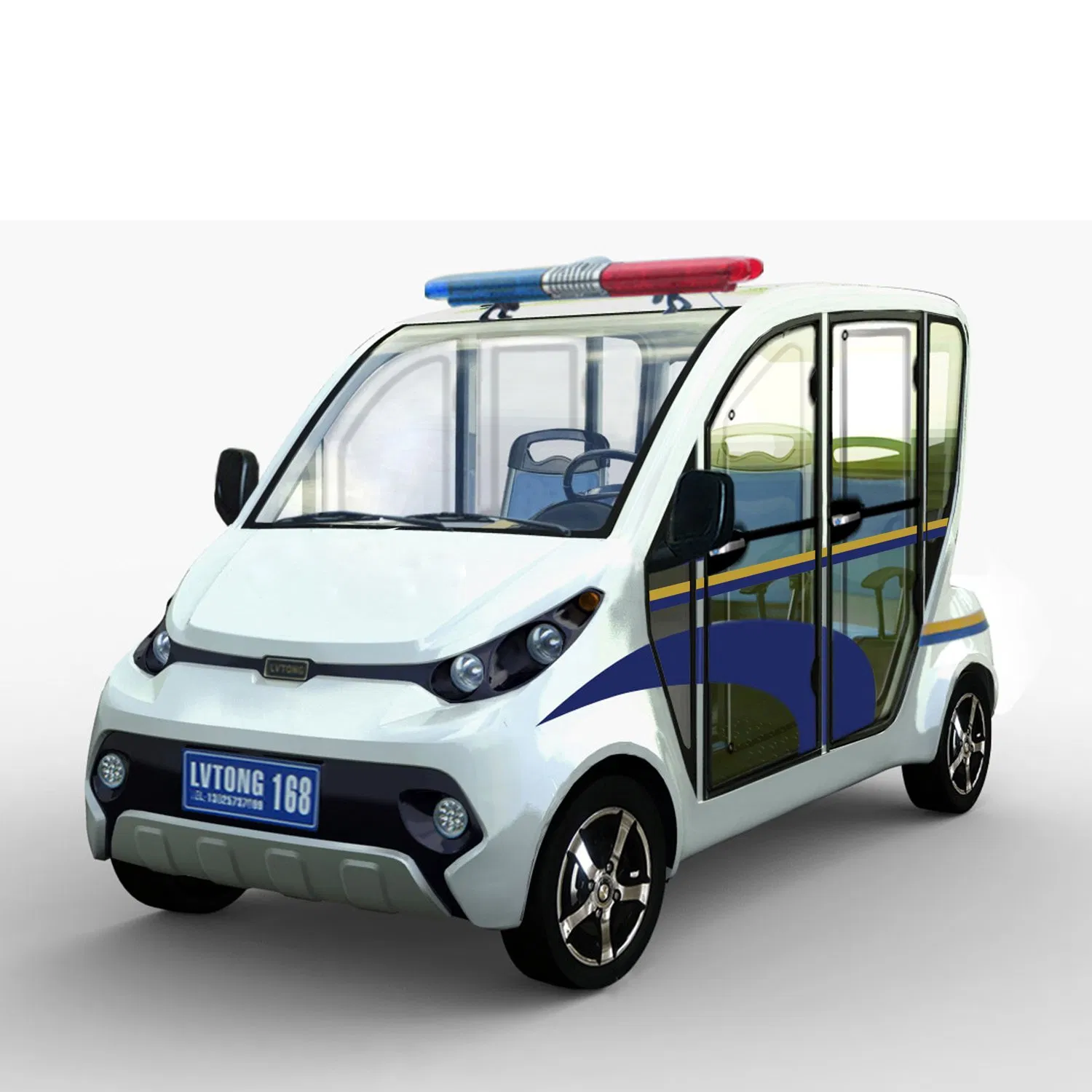

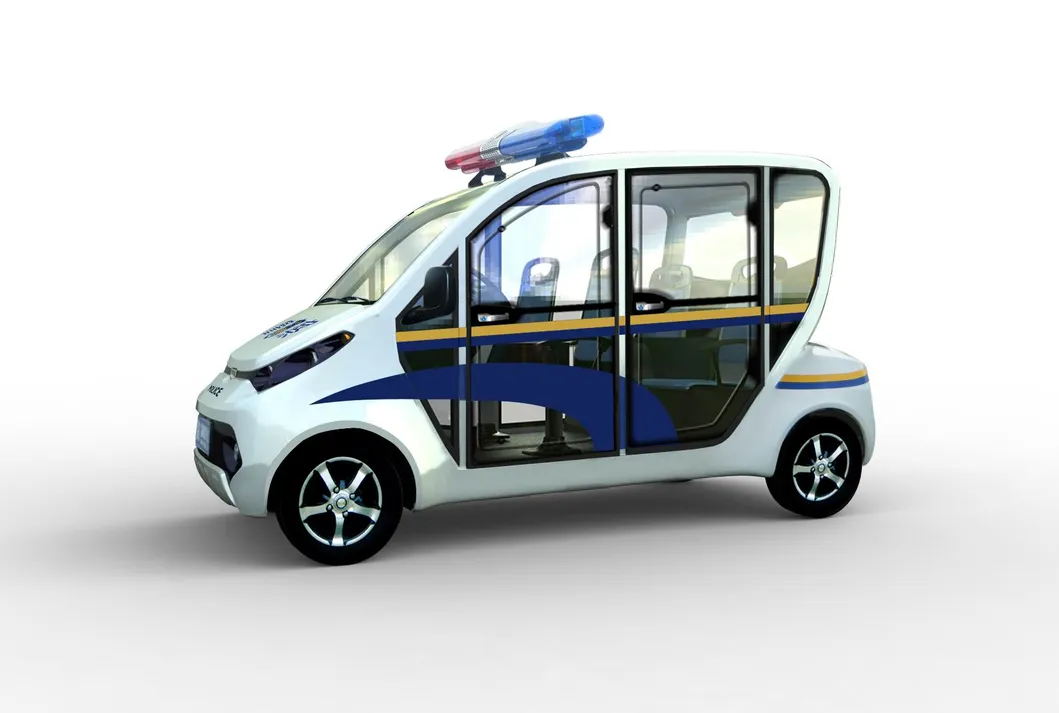

4 Wheels Battery Police Cart for Patrol Use

Product Description

4 Seaters Electric Patrol Car Lt-S4. PAF

Fiberglass dash board, Voltage Indicator 48V Switch Head Lights

Electric vehicle product description
1. Motor: 48V DC charger
2. Controller: US CurTis1266
3. Battery: Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.
4 Wheels Battery Police Cart for Patrol Use

4 Wheels Battery Police Cart for Patrol Use

Electric system	controller	1266/275A
	battery	Trojan battery 6V 8units
	motor	KDS48V/4KW motor
	charger	Computer Intelligent input 220V/110V ourput 48V 20A
Charging time		Less than 12 hours discharging rate 80%
Body configuration	Glass	Sandwich glass	Sun Roof	Fiber glass
	seat	leather	Floor	Autiskid rubber floor
	Rear mirror	Handoperated both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
	DC/Light/Signal	48V/12V-300W Front light turning light fog light rear light horn Buzzer
	Body	Fiber glass
	Dash Board	Fiberglass dash board Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
	Braking system	Front disc and rear dram our-wheel hydraulic brake+hand brake
	Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
	Rear axle and suspension	Integral type transaxle,gear ratio 12.31:1 semi-independent transaxle spring cylinder hydraulic shock absorption
	Tire diameter	535mm
Parameter	Length width height	355015001900mm
	Loading passenger	4
	Max speed km/h	30km/h
	Mileage /km	70-90km flat road
	Max climbing ability	15%
	Mini turning radium m	4.7m
	Mini ground clearance	130mm
	Wheel base	Front 1200/back 1230mm
	Braking distance	3.2M
