8 Seater Electric Classic Car (LT-S8. FA)

Product Description

Product description
8 Seater Electric Classic Car (LT-S8. FA)

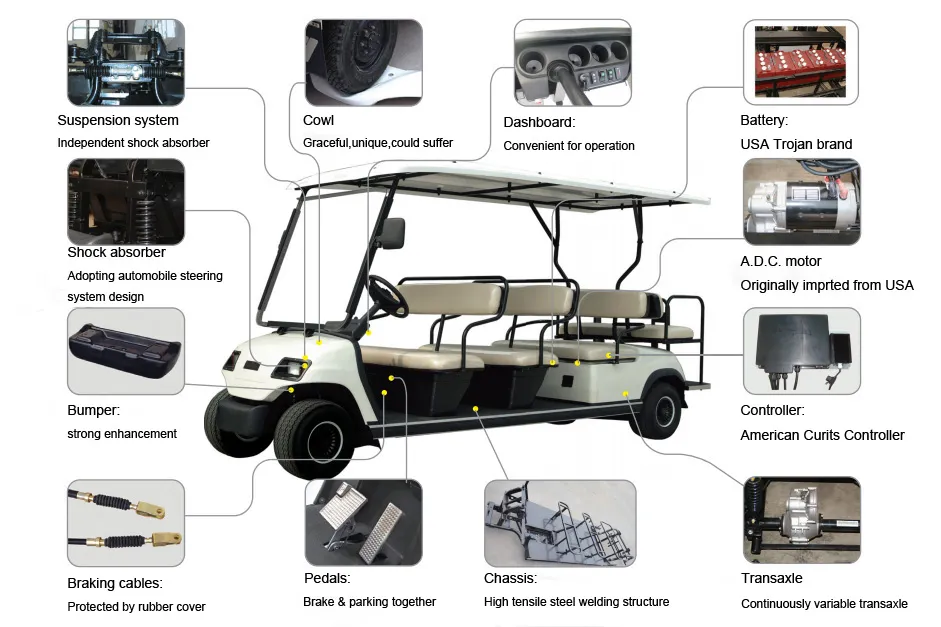

Features
1. Fashion shape design with simple appearance, elegant lines
2. US Curtis Controller
3. Trojan battery and maintenance free battery are available
4. Stable quality, little noise, anti-fatigue and long durability
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.

8 Seater Electric Classic Car (LT-S8. FA)

Electric system	controller	1268/400A
	battery	Trojan battery 6V 8units
	motor	KDS48V/4KW motor
	charger	Computer Intelligent input 220V/110V ourput 48V 20A
Charging time		Less than 12 hours discharging rate 80%
Body configuration	Glass	Sandwich glass	Sun Roof	ABS Vacuum forming
	seat	leather	Floor	Autiskid rubber floor
	Rear mirror	Handoperated, both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
	DC/Light/Signal	48V/12V-300W Front light turning light fog light rear light horn Buzzer
	Body	Fiber glass
	Dash Board	Fiberglass dash board Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
	Braking system	Front disc and rear dram, four-wheel hydraulic brake+hand brake
	Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
	Rear axle and suspension	Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
	Tire diameter	560mm
Parameter	Lengthwidthheight	505014901900mm
	Loading passenger	8
	Max speed km/h	25km/h
	Mileage /km	70_ 90km flat road
	Max climbing ability	20%
	Mini turning radium m	6.5m
	Mini ground clearance	142mm
	Wheel base	Front 1200/back 1210mm
	Braking distance	3.5m

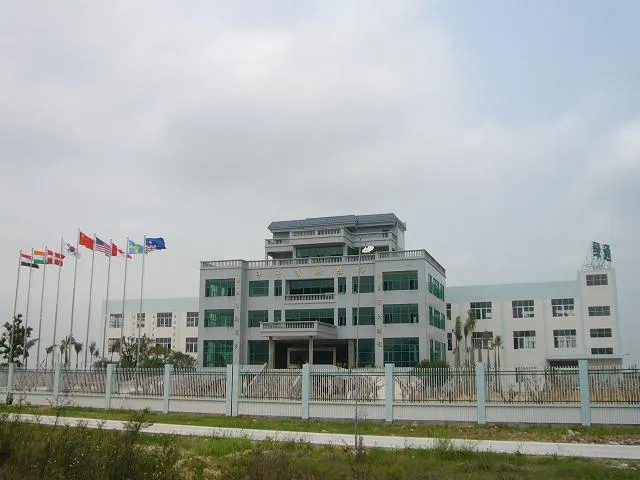

Company Information

1). Founded in 2004, with more than 13 years experience in Producing the golf cart
400 employees including more than 70 engineers;

2). There are more than 400 employees in our factory, including 20 sales and 20 engineers ,specialized services for overseas markets

3). Our products are shipped to more than 80 countries around the world

4). North America ,European, Australia and Asia are the main market.

5). 6 years Made in China gold supplier
