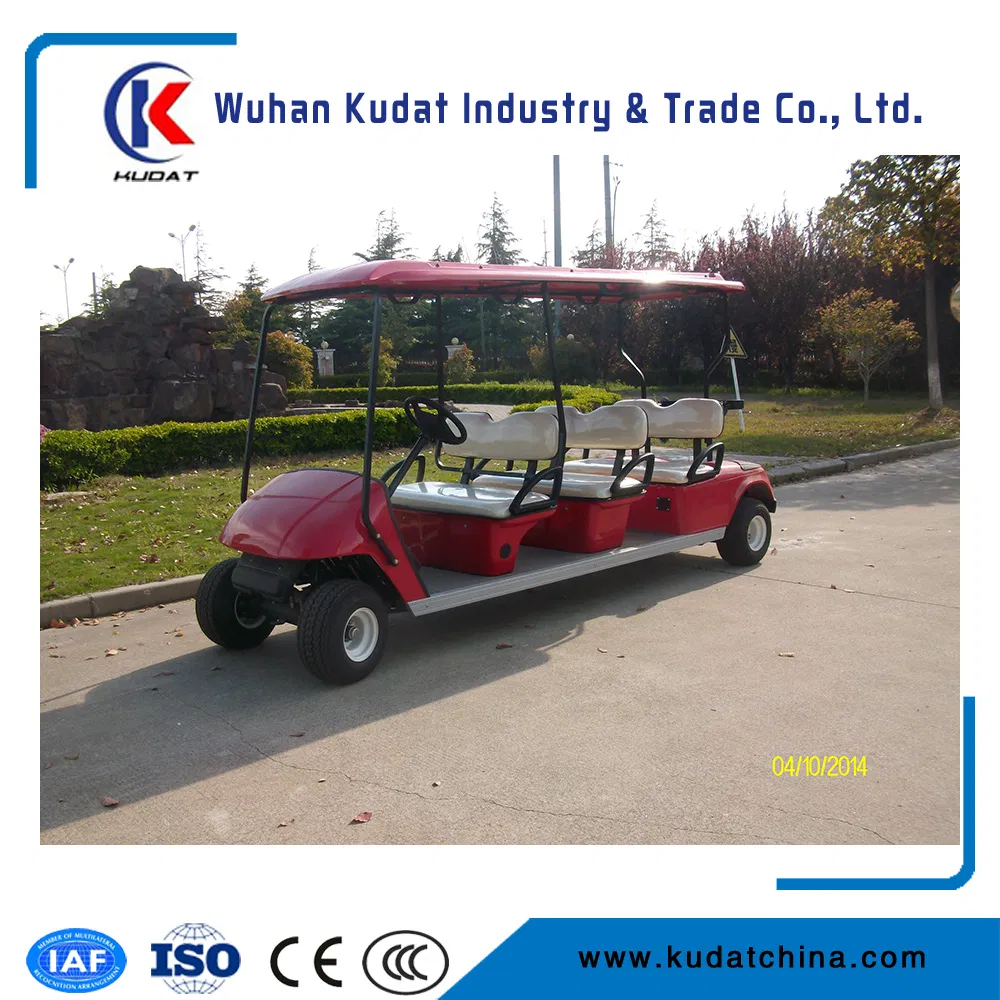

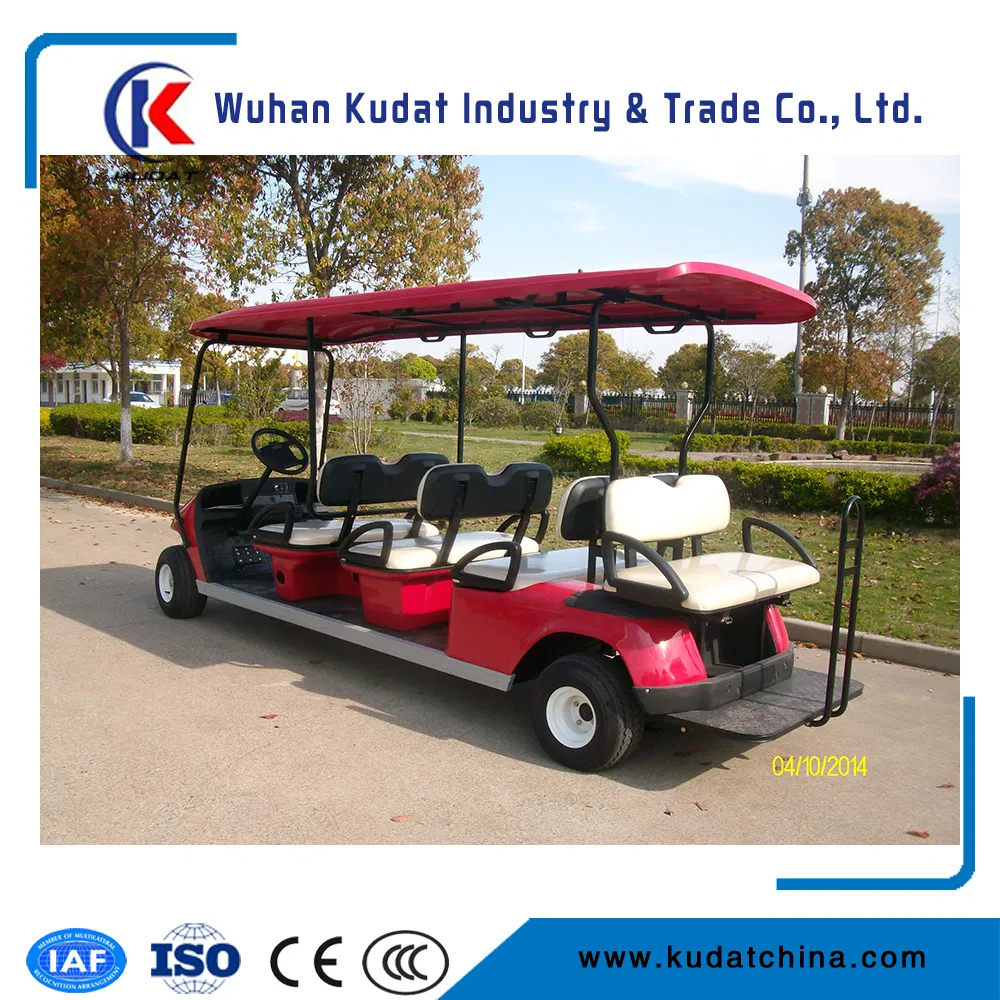

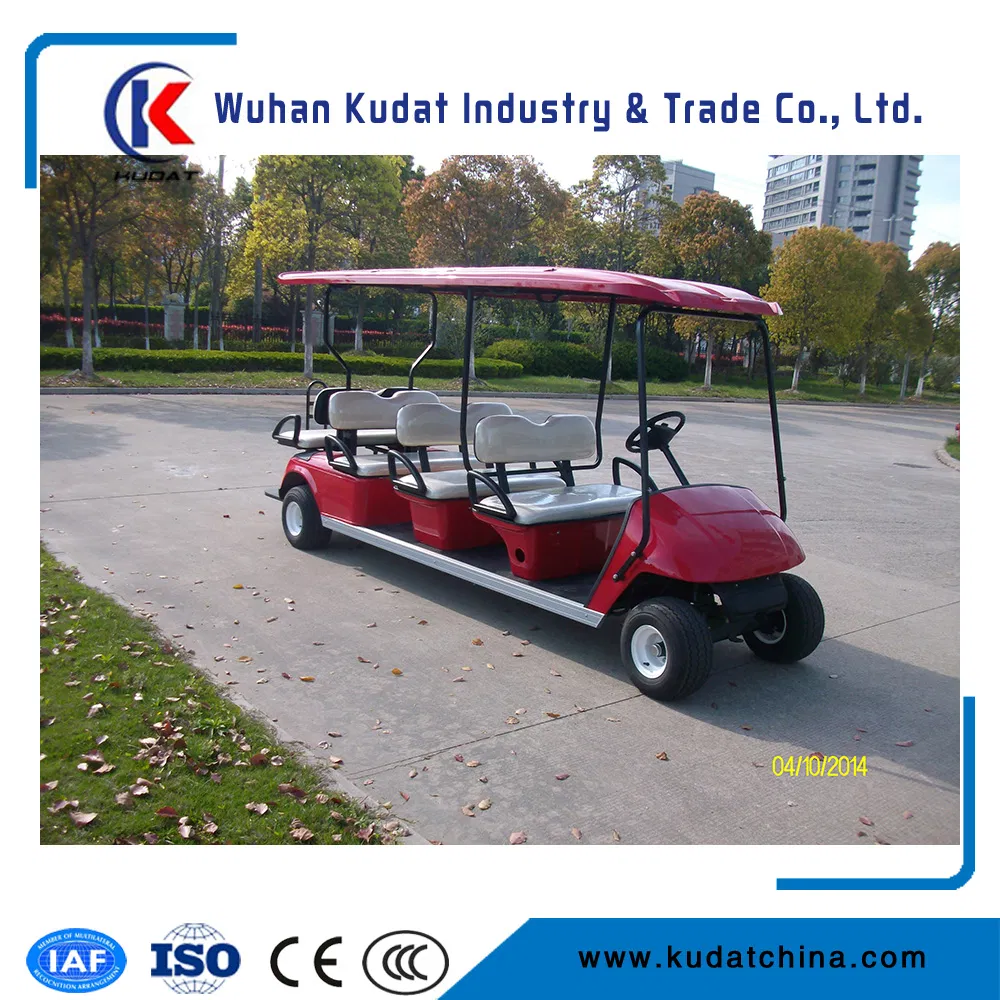

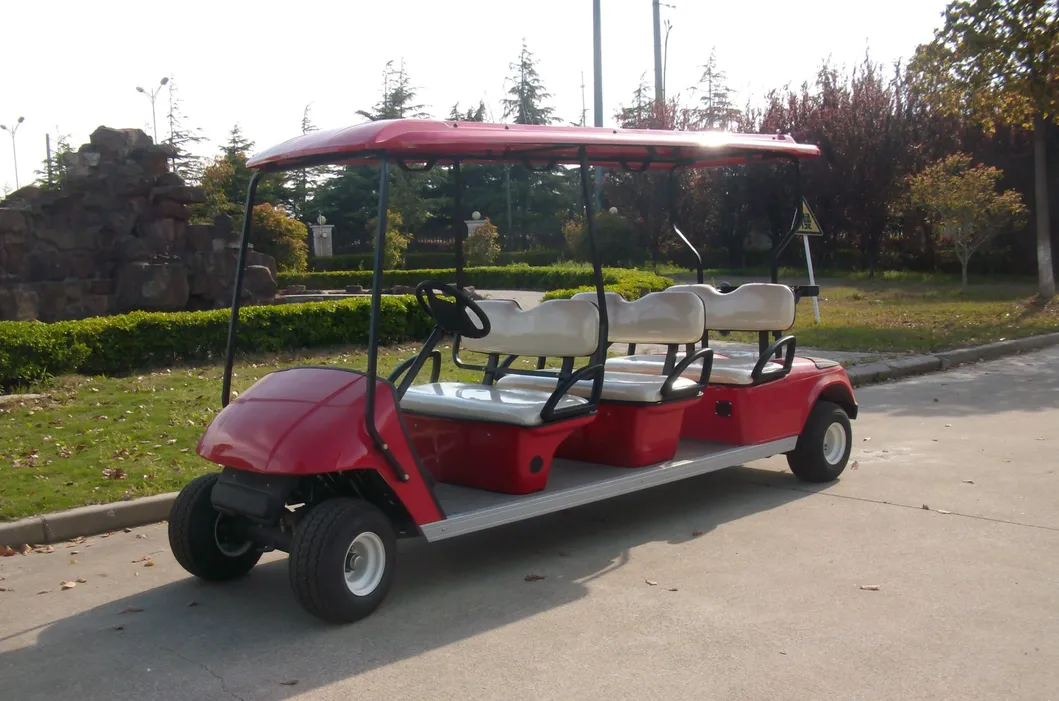

8 Seats 48V 4kw Golf Cart
Features & Benefits1. Good aftersale-service, as most parts are manufactured by ourselves;2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada), Curtis Controller(From USA);......
Send Inquiry
Product Description
Features & Benefits
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada), Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada), Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.
| Drive Type | 4*2 Rear-wheel drive | |
| Rated capacity (including driver) | 8Persons | |
| Dimensions(L*W*H) | 4160*1180*1800mm | |
| Wheel base | 3150mm | |
| Front / rear track | 870/980mm | |
| Curb weight | 710kgs | |
| Maximum load | 640kgs | |
| Minimum turning radius | 4.2m | |
| Minimum ground clearance | 100mm | |
| Maximum vehicle speed | 24km/h | |
| Maximum grade ability | 30% | |
| Max drove slope | 30% | |
| Braking distance | ≤6m | |
| Charging time | 8-12H | |
| Driving range on one charge | 80km | |
| Battery | 6V216AH*6 or 8V170AH*6 | |
| Power of Motor | 48V4KW | |
| Controller | American Curtis Electronics Controller 1268-5403(48V400A) | |
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | |
| Charger | Full Automatic Efficiency Pulse Charger | |
| Rear-Suspension | Leaf Spring With Hydraulic Shock Absorbers | |
| Steering | Self Compensating "Rack & Pinion" Steering | |
| Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | |
| QTY Per Container | 12pcs/40FT | |
