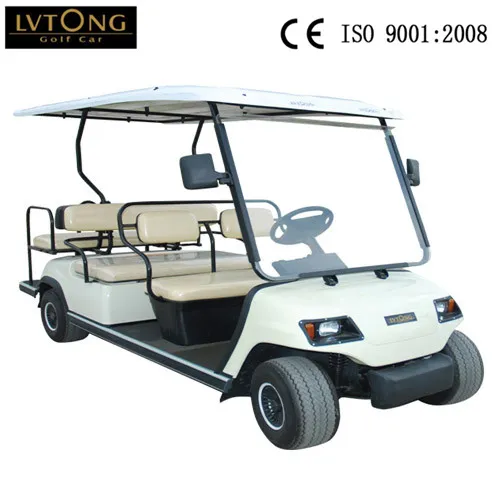

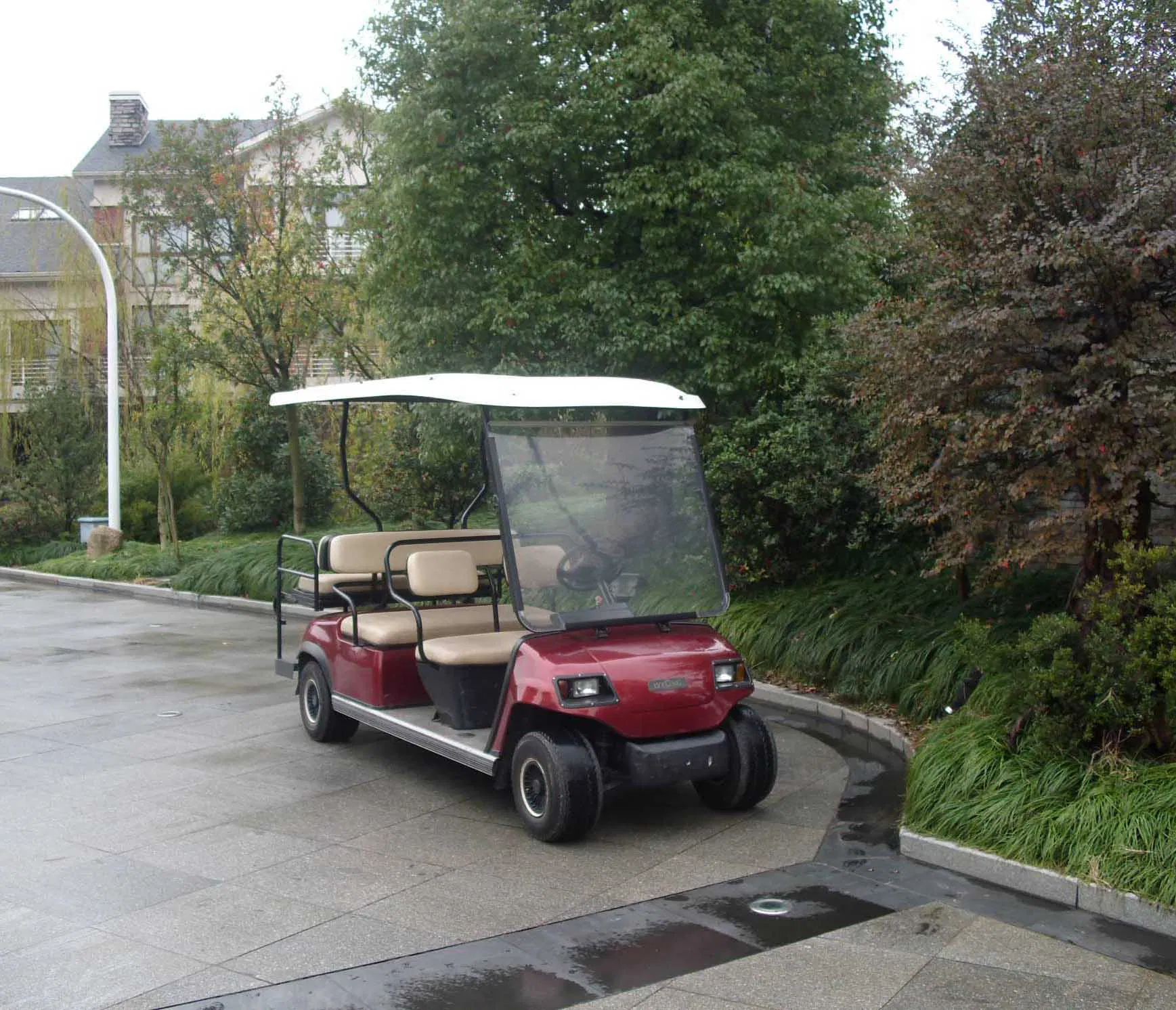

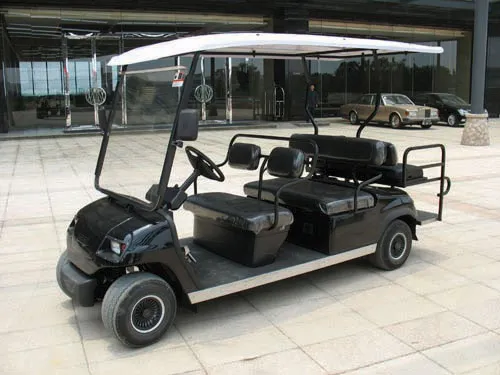

Cheap 6 Seats Go Kart (Lt-A4+2)
Electric vehicle product description1. Motor: US ADC brand11 Originally imported from USA12 3.7KW output makes strong torque and stable performance1.3 Temperature resistant, excellant sealing property2. Controller: US CurTis12663. Battery:Trojan4. Stable quality, little noise, anti-fatigue and long ......
Send Inquiry
Product Description
Electric vehicle product description
1. Motor: US ADC brand
11 Originally imported from USA
12 3.7KW output makes strong torque and stable performance
1.3 Temperature resistant, excellant sealing property
2. Controller: US CurTis1266
3. Battery:Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.
1. Motor: US ADC brand
11 Originally imported from USA
12 3.7KW output makes strong torque and stable performance
1.3 Temperature resistant, excellant sealing property
2. Controller: US CurTis1266
3. Battery:Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.
| Electric system | controller | 1266/275A | ||
| battery | Trojan battery 8V 6 units | |||
| motor | KDS48V/3.7KW motor | |||
| charger | Computer Intelligent input 220V/110V ourput 48V 20A | |||
| Charging time | Less than 12 hours discharging rate 80% | |||
| Body configuration | Glass | PC glass | Sun Roof | ABS Vacuum forming |
| seat | leather | Floor | Autiskid rubber floor | |
| Rear mirror | Handoperated, both side | Steering | Dual automotive-style strut and self-adjust rack-and pinion steering | |
| DC/Light/Signal | 48V/12V-300W Front light turning light rear light horn Buzzer | |||
| Body | PP Vacuum forming | |||
| Dash Board | PP Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse | |||
| Braking system | Rear drum brake+compound pedal brake | |||
| Front axle and suspension | Independent suspension helical spring +cylinder hydraulic shock absorption | |||
| Rear axle and suspension | Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption | |||
| Tire diameter | 452mm | |||
| Parameter | Length*width*height | 3320*1200*1900mm | ||
| Loading passenger | 6 | |||
| Max speed km/h | 22km/h | |||
| Mileage /km | 80_ 90km flat road | |||
| Max climbing ability | 20% | |||
| Mini turning radium m | 3.9m | |||
| Mini ground clearance | 110mm | |||
| Wheel base | Front 930/back 1010mm | |||
| Braking distance | 4.4M | |||
1). 13 years experience in Producing the golf cart and golf cart parts
2). America Curtis programmable controller
3). 6 years Made in China gold supplier
4). 5 stars supplier of Global Sources
5). North America ,European, Australia and Asia are the main market.
