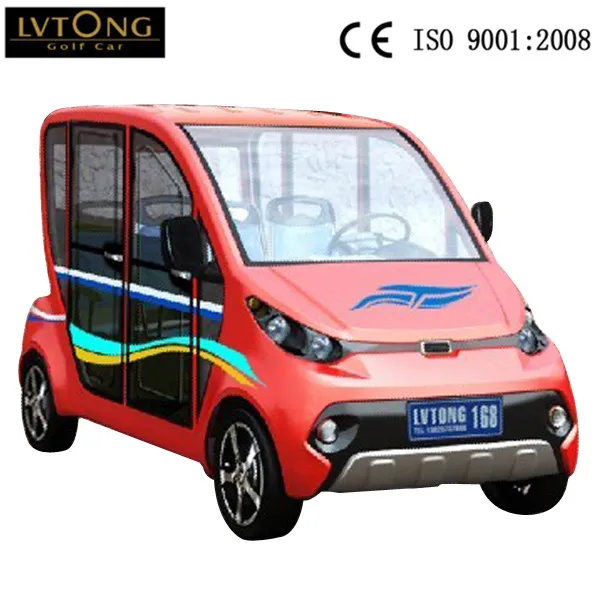

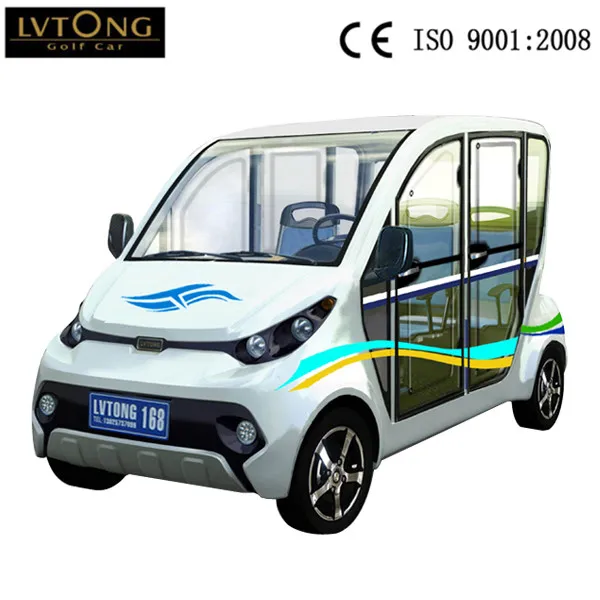

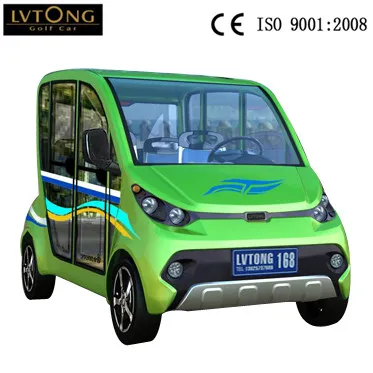

Factory 4 Seater Household Electric Car

Product Description

Front disc and rear DRAM, four-wheel hydraulic brake+hand brake

Electric vehicle product description

1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery: Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.
Factory 4 Seater Household Electric Car

Electric system	controller	1266/275A
	battery	trojan battery 6V 8units
	motor	KDS48V/3.7KW motor
	charger	Computer Intelligent input 220V/110V ourput 48V 20A
Charging time		Less than 12 hours discharging rate 80%
Body configuration	Glass	Sandwich glass	Sun Roof	Fiber glass
	seat	leather	Floor	Autiskid rubber floor
	Rear mirror	Handoperated, both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
	DC/Light/Signal	48V/12V-300W Front light turning light fog light rear light horn Buzzer
	Body	Fiber glass
	Dash Board	Fiberglass dash board Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
	Braking system	Front disc and rear dram, four-wheel hydraulic brake+hand brake
	Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
	Rear axle and suspension	Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
	Tire diameter	535mm
Parameter	Lengthwidthheight	355015001900mm
	Loading passenger	4
	Max speed km/h	30km/h
	Mileage /km	70_ 90km flat road
	Max climbing ability	15%
	Mini turning radium m	4.7m
	Mini ground clearance	130mm
	Wheel base	Front 1200/back 1230mm
	Braking distance	3.2M
