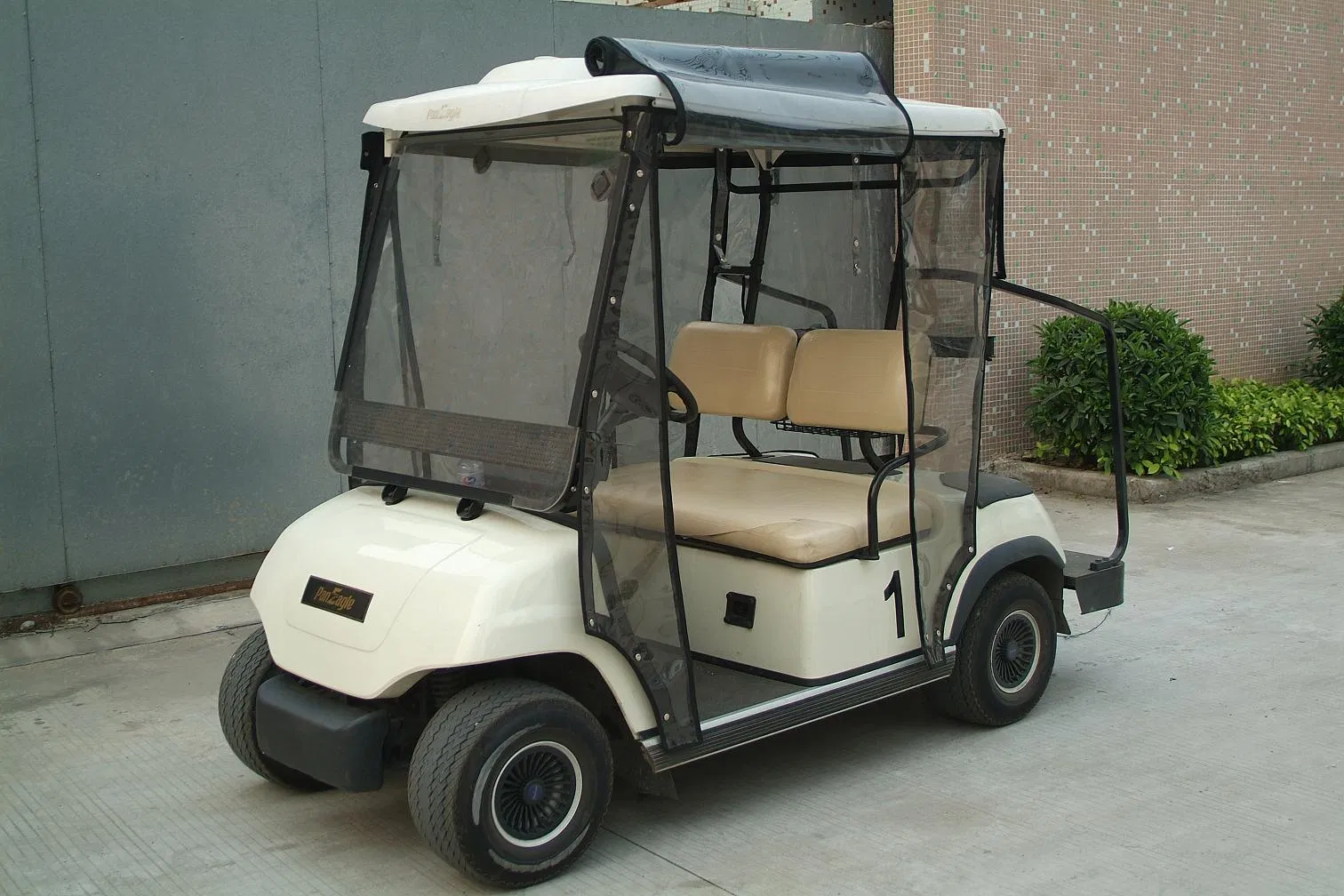

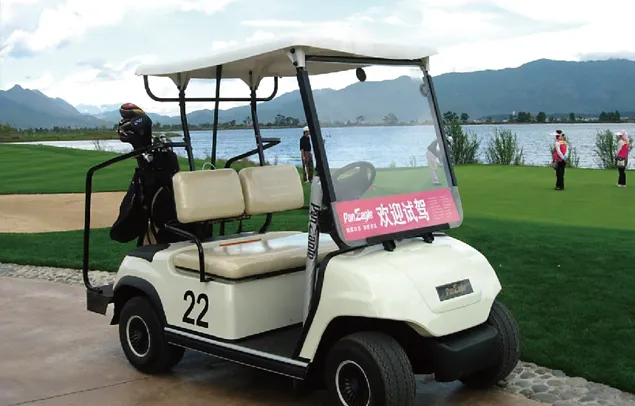

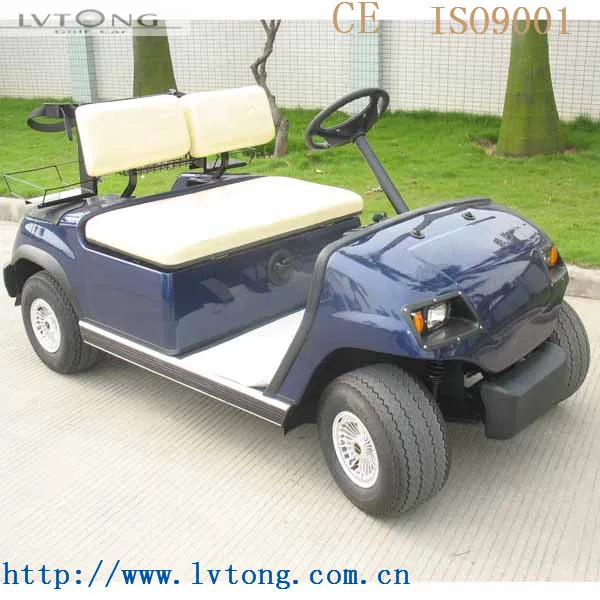

                            New 2 Person Electric Buggy
                            • New 2 Person Electric BuggyNew 2 Person Electric Buggy
                            • New 2 Person Electric BuggyNew 2 Person Electric Buggy
                            • New 2 Person Electric BuggyNew 2 Person Electric Buggy
                            • New 2 Person Electric BuggyNew 2 Person Electric Buggy

                            New 2 Person Electric Buggy

                            PP Vacuum forming, Voltage Indicator 48V\Switch Head Lights\Switch - Indicators RightElectric systemcontroller1268/400Abatterytrojan battery 8V 6 unitsmotorKDS48V/3.7KW motorchargerComputer Intelligent input 220V/110V ourput 48V 20ACharging timeLess than 12 hours discharging rate 80%Body configurati......

                            Send Inquiry

                            Product Description

                            PP Vacuum forming, Voltage Indicator 48V\Switch Head Lights\Switch - Indicators Right
                            Electric systemcontroller1268/400A
                            batterytrojan battery 8V 6 units
                            motorKDS48V/3.7KW motor
                            chargerComputer Intelligent input 220V/110V ourput 48V 20A
                            Charging timeLess than 12 hours discharging rate 80%
                            Body configurationGlassPC   glassSun RoofABS  Vacuum forming

                            seatleatherFloorAutiskid rubber floor
                            Rear mirrorHandoperated, both sideSteeringDual automotive-style strut and self-adjust rack-and pinion steering
                            DC/Light/Signal48V/12V-300W    Front light turning light rear light horn Buzzer
                            BodyPP  Vacuum forming
                            Dash BoardPP  Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
                            Braking systemRear drum brake+compound pedal brake
                            Front axle and suspensionIndependent suspension helical spring +cylinder hydraulic shock absorption
                            Rear axle and suspensionIntegral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
                            Tire diameter452mm















                            Parameter
                            Length*width*height3600*1200*1900mm
                            Container sixe1840*1086*265mm
                            Loading passenger2
                            Max speed km/h22km/h
                            Mileage
                            /km
                            70_ 90km flat road
                            Container truck  KG300KG
                            Max climbing ability25%
                            Mini turning radium m5.4m
                            Mini ground clearance110mm
                            Wheel baseFront 930/back 1010mm
                            Braking distance5.5m
