Bin Lorry Hook Lift Garbage Truck for Sale
Bin Lorry Hook Lift Garbage Truck for sale Product DescriptionHook lift garbage truck are the main garbage truck, the volume can be from 3 cbm to 30cbm. We can also provide you with different kinds of garbage truck, such as compressor garbage truck, swing arm garbage truck, hanging bucket garbage t......
Send Inquiry
Product Description
Hook lift garbage truck are the main garbage truck, the volume can be from 3 cbm to 30cbm. We can also provide you with different kinds of garbage truck, such as compressor garbage truck, swing arm garbage truck, hanging bucket garbage truck, dumper type garbage truck and sealed dump garbage truck.
Specification
| Hook Lift Garbage | ||||
| Gross weight(Kg) | 8200 | Drive type | 4x2,LHD,RHD | |
| Curb weight(Kg) | 3700 | Overall dimension(mm) | 5830X2100X2440 | |
| Loading Weight (kg) | 4500 | Approach/departure angle(°) | 24/28 | |
| Axle No. | 2 | Front/rear hang(mm) | 1210/820 | |
| Axle load(Kg) | 3310/4965 | Wheelbase(mm) | 3800 | |
| Chassis specification | ||||
| Brand name | Dongfeng | Dimension(mm) | 6815X2080×2440 | |
| Tire specification | 7.50-16 | Tire No. | 6+1(One spare tire) | |
| Steel spring number | 8/10+7 | Front track base(mm) | 1770 | |
| Fuel type | Diesel | Rear track base(mm) | 1586 | |
| Emission standard | Euro III | Transmission | 6 Forward gear | |
| Cabin | Single row,3 person allowed, with power steering, Choose to fix A/C | |||
Engine model | Brand | Displacement(ml) | Horse Power(kw) | |
| CY4102-C3C | Dongfeng Chaoyang Engine | 4500 | 88(120HP) | |
Tank body | ||||
| Tank capacity(m³) | 5 | Garbage Bin material | QB235 Carbon steel | |
| Discharge Method | Rear dump | Operation control system | Manual + electric | |

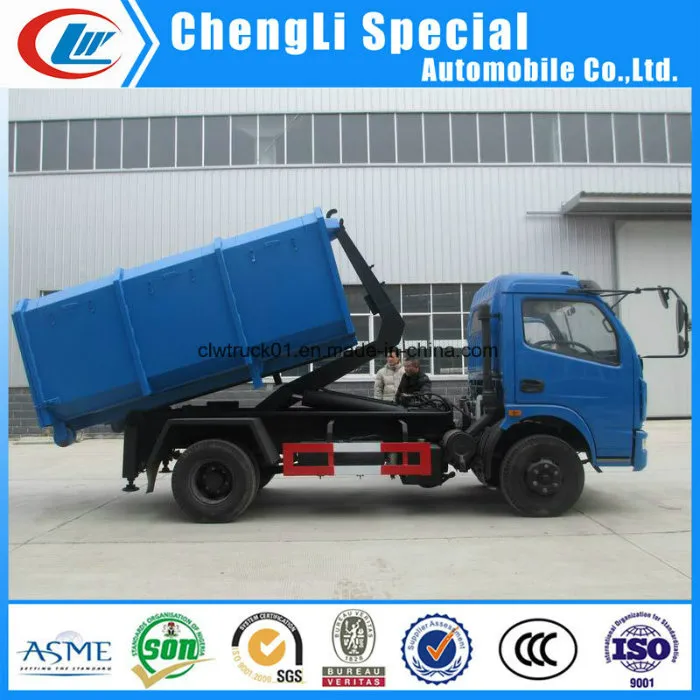

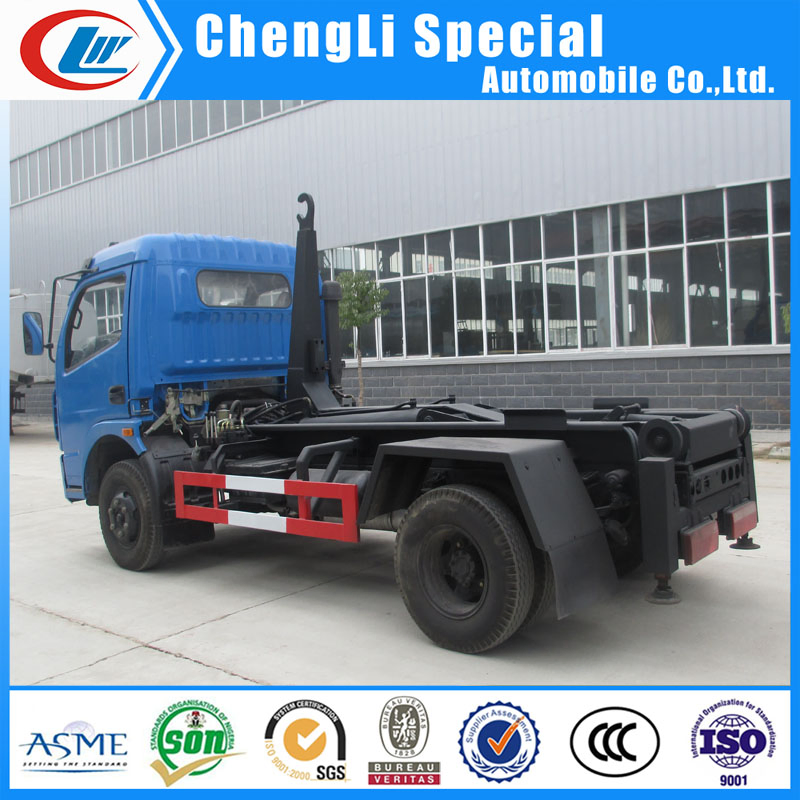

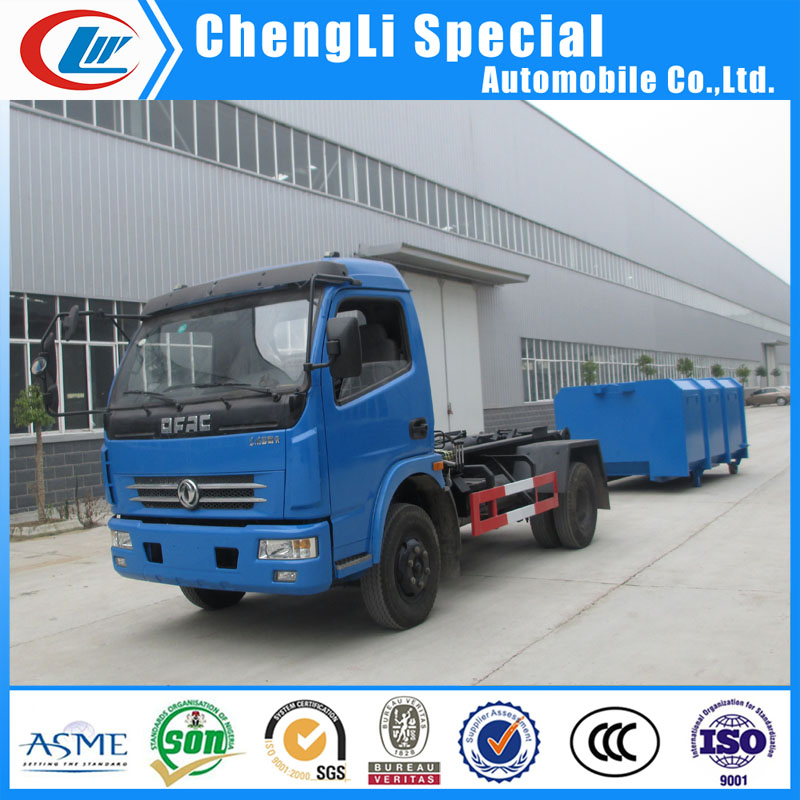

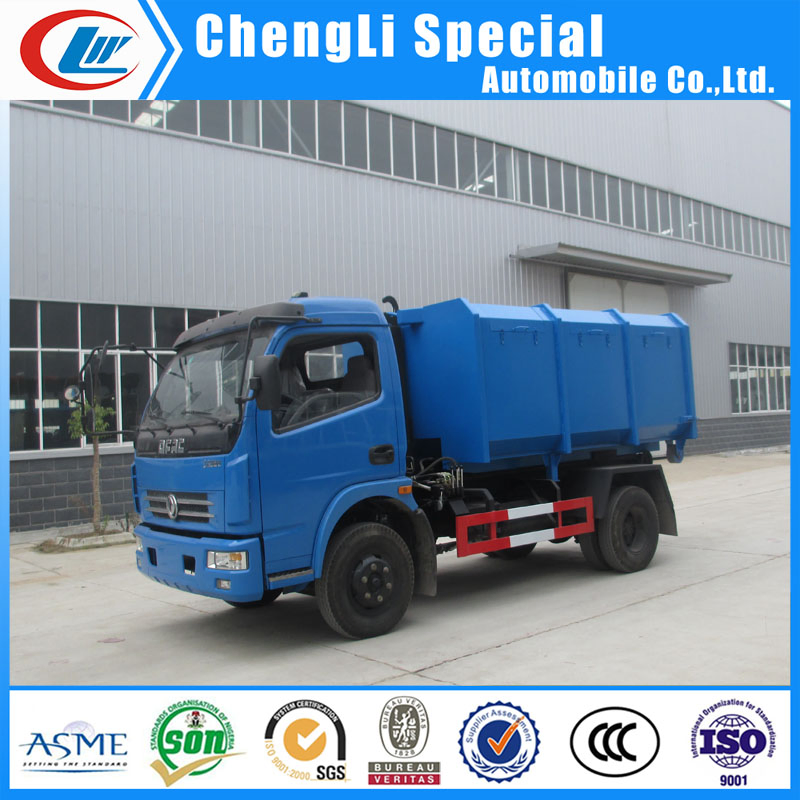

Product photo for reference:

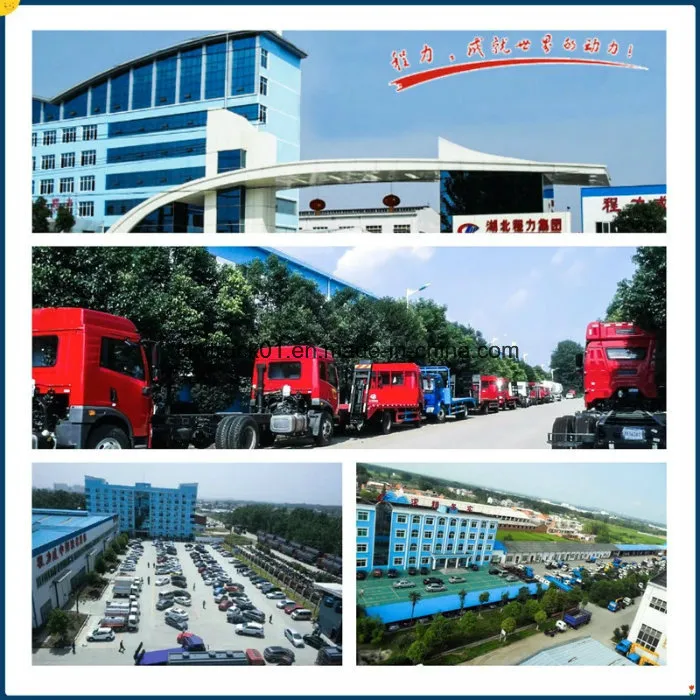

Company Information
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.
1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.
2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.
3. More than 300 type of products supply.
4. Our sales volume of 2015 reach US$300 million.
Our Services
1. One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
Certificates

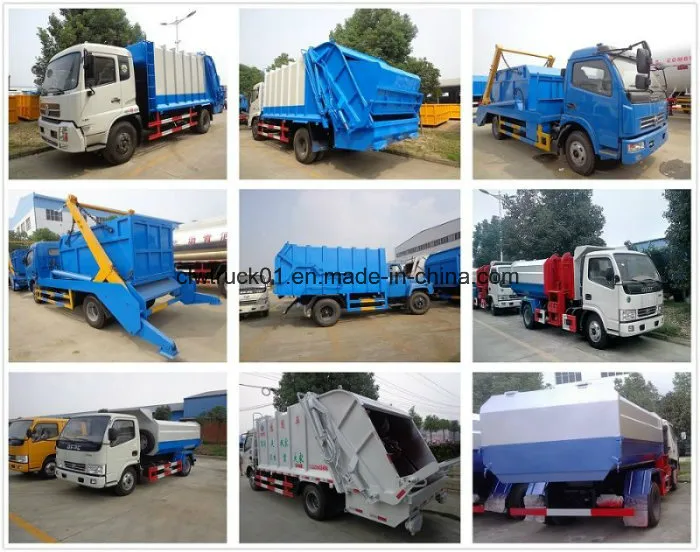

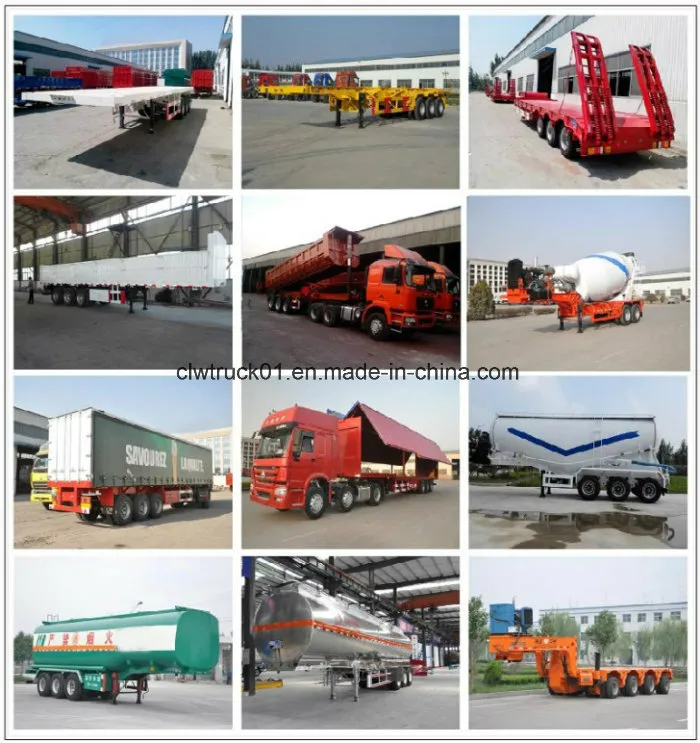

Other Products
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
